Sash Concealed - SC120

open-in system, sash-concealed, slim line, lining-up frame lines

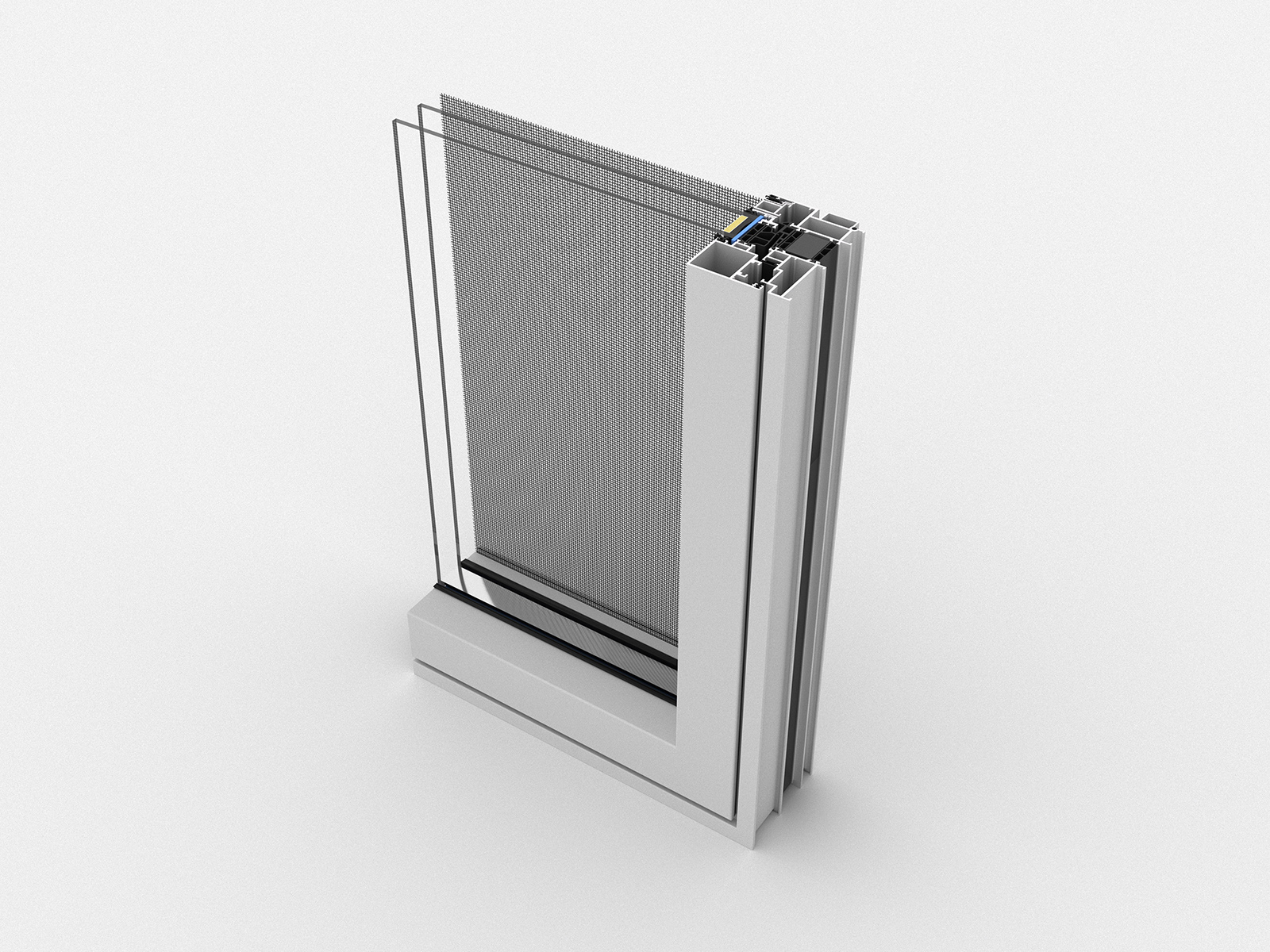

SC120 Concealed Sash Series is an innovative open-in window system. It has a much slimer mullion and transom than most regular open-in window systems in the market. With creative design of opening stiles lining up with fixed ones, so SC120 opening sash stile is concealed.

With a flush surface internally and externally as well as all opening stiles lining up with fixed ones, SC120 can provide exquisite outlook to the property.

This series has an integrated open-in fly screen, most of the time the screen is closed to stop flies and ventilate, and opens inward for ease of cleaning.

SC120 Series is a passive window system with triple glazed glass, its outstanding thermal insulation performance gives professionals a cost-effective choice for passive house and projects that have a low U-value to meet.
Features
●  innovative open-in window system
●  conealed opening sash stile
●  all opening stiles lining up with fixed ones
●  passive window system
●  73mm ultra slim middle line, mullion and transom
●  thermal-break structure to add thermal insulation
●  visually appealing internal and external flush frame
●  integrated open-in fly screen
●  thermal-break subsill/subhead for installation
202202070223003
Applications
●  tilt&turn window
●  fixed window
●  open-in casement window
●  hopper window
Performance
JWS120
Frame
Maximum Sash Area
Maximum Sash Weight
U-value
SHGC
Acoustic Insulation
120 mm
Tilt & Turn / Casement / Hopper - 2.4 / 2.2 /2.0  m2
Tilt & Turn / Casement / Hopper - 105 / 90 / 80 kg
3.45-1.67
0.52-0.29
33dB - 48dB
Product
2
1
3
6
12
