Parallel Window - PW95
Parallel Window - PW95
flush frame, wide opening, electric and manual

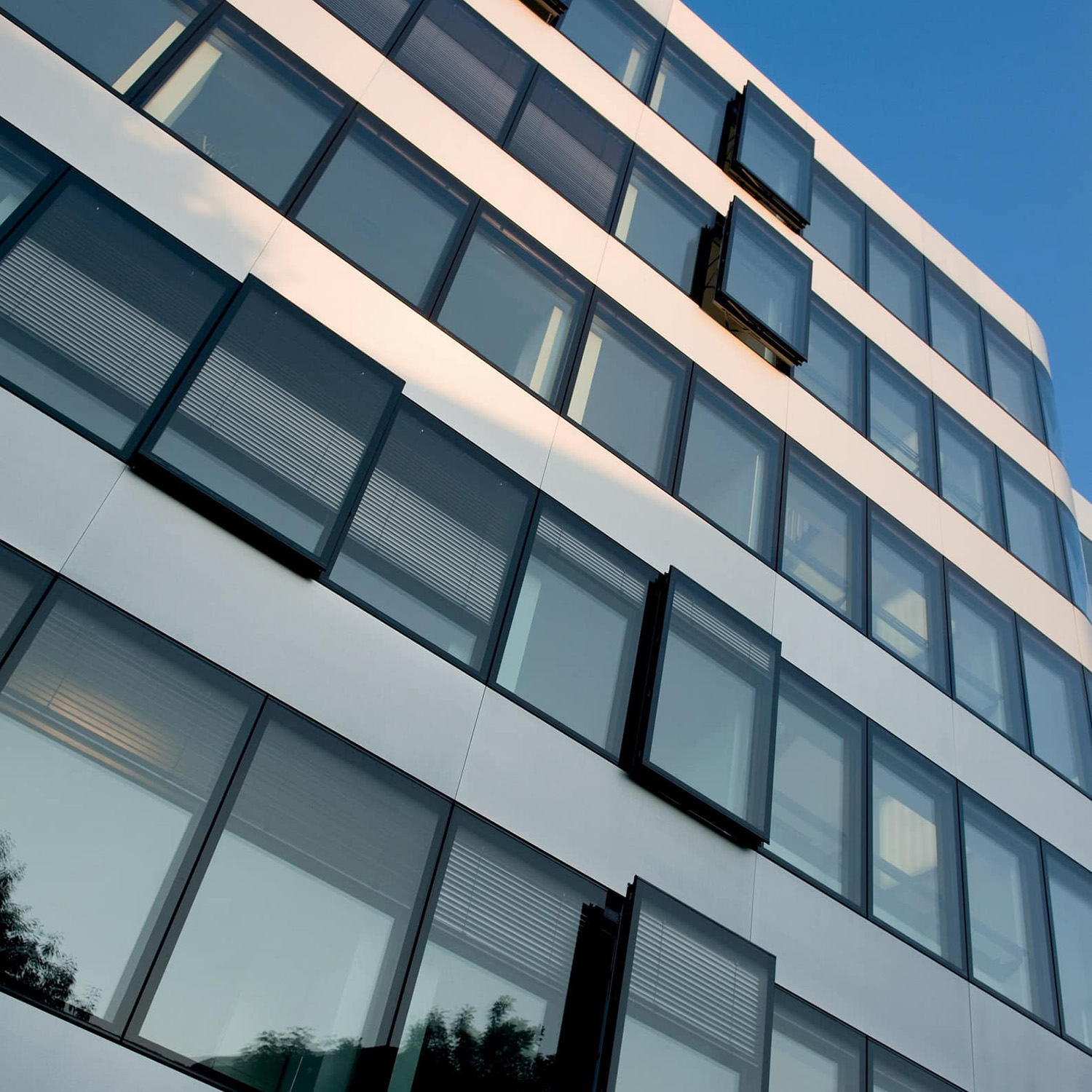

The Parallel Window is a brand new window type in the window industry, which enable the whole opening panel to open parallel to the window frame. Parallel window have the advantage of ventilation, view and architectural aesthetics.
TB95PW is a creative parallel window design that combines a thermally-broken structure and internal and external flush-frame. It can be manufactured up to 6 m 2 for each opening panel with electric operation, as well as full height window as a curtain wall, making it a good choice for high-end residential and commericial projects.
The standard model uses a framed stile or it can be upgraded to a frameless glass version suitable for curtain walls.
Features
● brand new window type
● flush-frame design
● thermal-break structure
● parallel sash up to 6 m2 (electric operation)
● manual or electric operation
● standard framed sitle
● upscale invisibile stile to acquire framless glass facade
● thermal-break structure
● parallel sash up to 6 m2 (electric operation)
● manual or electric operation
● standard framed sitle
● upscale invisibile stile to acquire framless glass facade
Performance
Frame
Maximum Sash Area
Maximum Sash Weight
U-value
U-value
SHGC
Acoustic Insulation
Acoustic Insulation
95 mm
6.0 m2
500 kg
3.29-1.55
0.58-0.28
34dB - 45dB
