Flush Line - FL86

innovative residentail curtain wall design, flush line, opening sash concealed, flush frame internally and externally, conealed screen
FL86 Flush Line Series is an innovative series and an ideal design for residentail curtain wall applaication. The core design concept of this innovative system is flush.

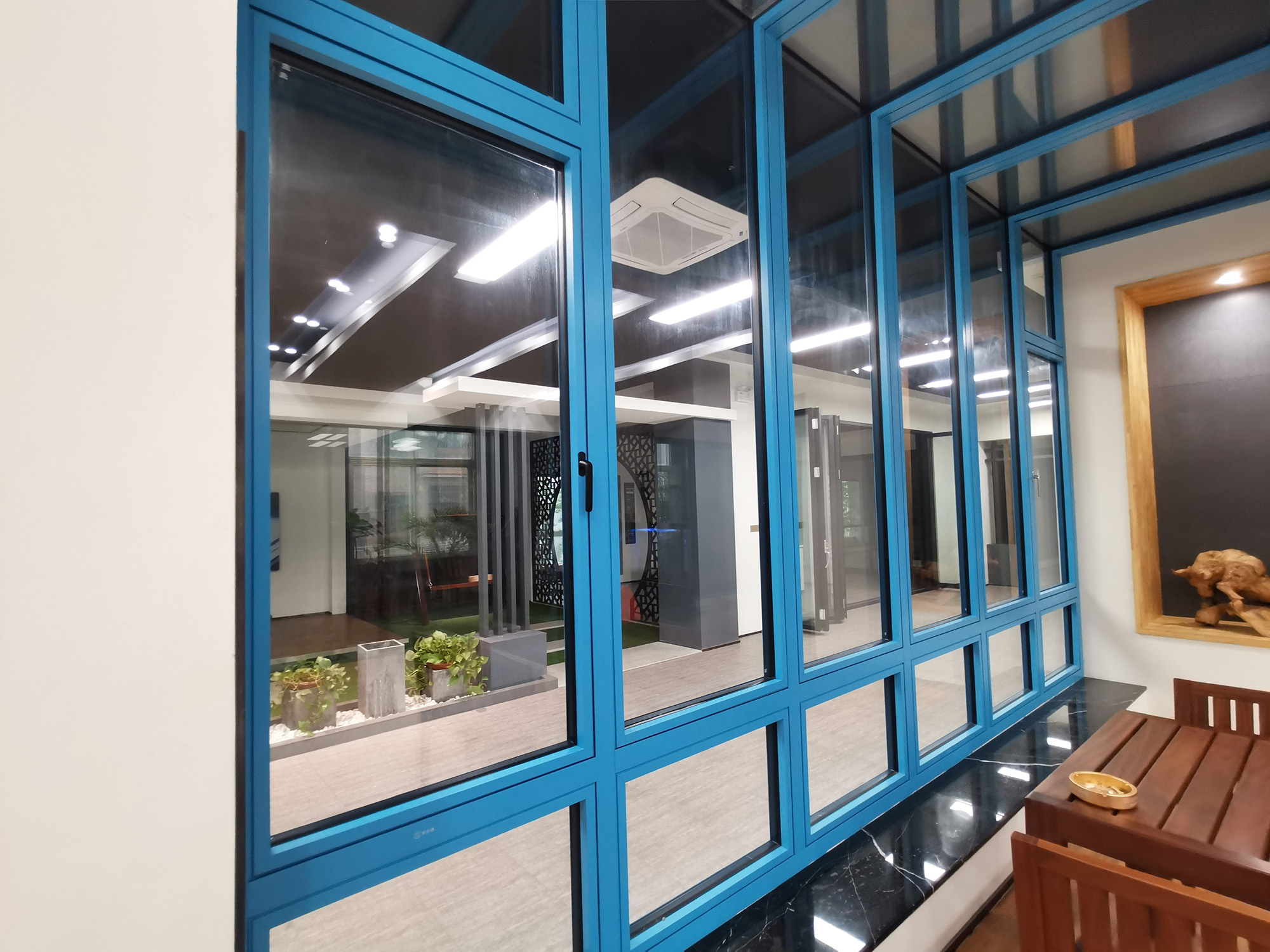

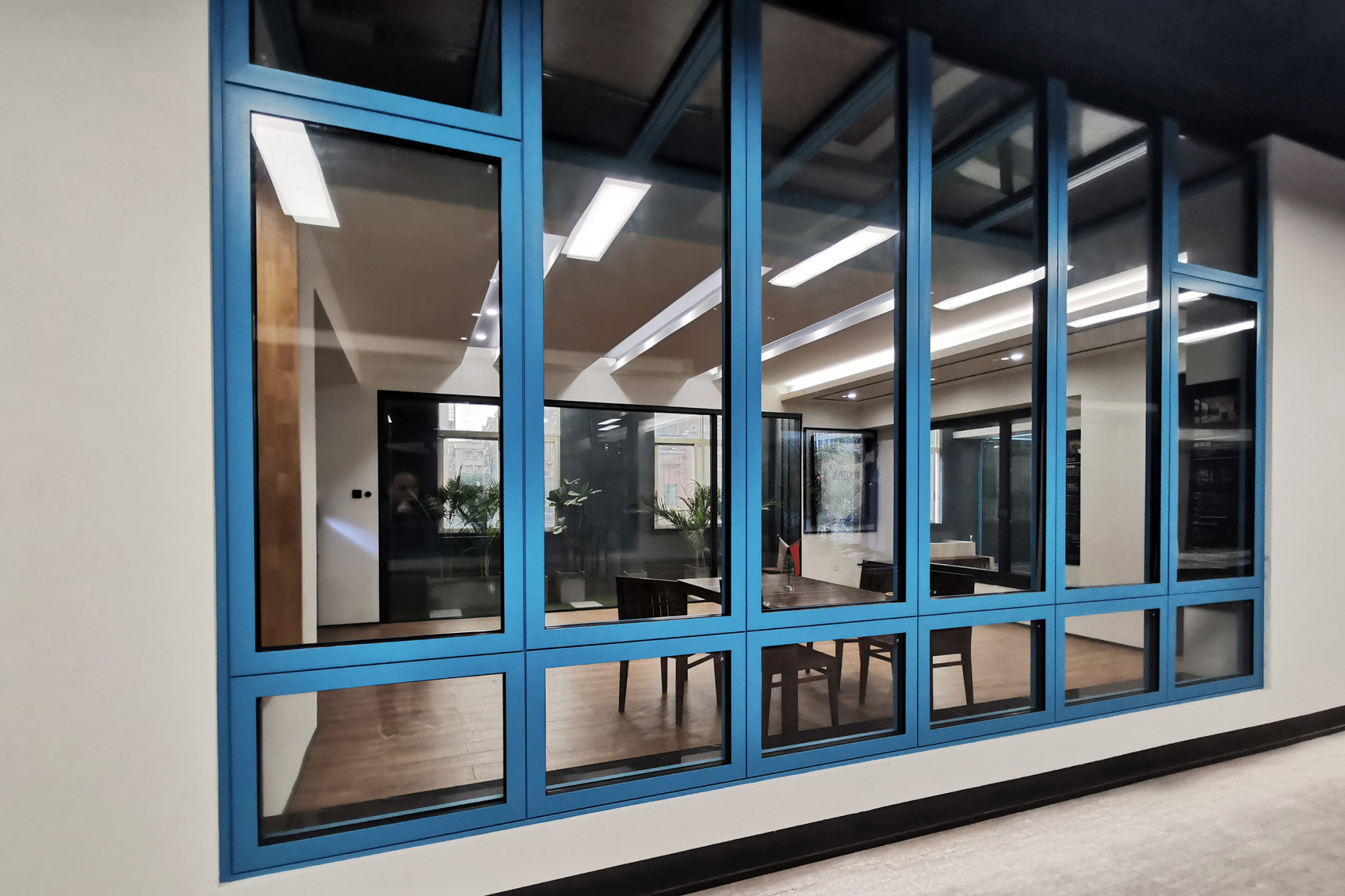

It offers visually appealing flush lines to all opening and fixed panels. This is because all lines of opening stiles line up with fixed ones, all lines of mullion and transom are symmetric. Therefore all opening sash stiles are conealed and symmetric to fixed stiles, adding looks and value added to the property. FL86 of course also has flush surface internally and externally.

FL86 uses integrated concealed fly screens as standard for opening panel up to 700mm wide and eliminates the need for a separate screen frame. The flyscreen mesh rolls into side frame so it won’t block any view.
Features
●  innovative flush line open-out series
●  advanced residentail curtain wall design
●  conealed opening sash stile
●  all opening stiles lining up with fixed ones
●  symmetric line design of mullion and transom to add extra beauty to the property
●  thermal-break structure to add thermal insulation
●  integrated concealed flyscreen
●  thermal-break subsill/subhead for installation
86 (8)
Applications
  awning window (European push-out style)
●  casement window (European push-out style)
  fixed window
  residentail curtain wall
Performance
JWS120
Frame
Maximum Sash Area
Maximum Sash Weight
U-value
SHGC
Acoustic Insulation
86 mm / 120 mm(for ultra high residential curtain wall)
Casement / Awning / Door - 2.4 3.0 / 3.3 m2
Casement / Awning / Door80 / 130 / 180 kg
3.17-1.46
0.56-0.27
33dB - 46dB
Product
21
23
24
22
25
26
