C150 Commercial Series
C150 Commercial Series
commercial system, large glazing applicaiton, joinable mullion, subsill for easy installation
C150 Commercial Series is a reinforced commercial glazing system designed for commercial large glazing units.
C150 series keeps the design features of C100 series, including the flush external frame and male-female joinable mullion. Its structure strength is much higher to endure higher wind spend for large glazing units and high rise ones. Its 152x60mm male-female joint is to design to bring convenience to join multiple panels and easy installation.
The special design of C150 series offers thermal-break option for projects of higher thermal insulation demand.
C150 series also has complete subframe system to provide ease of drainge and fitting.
Applications

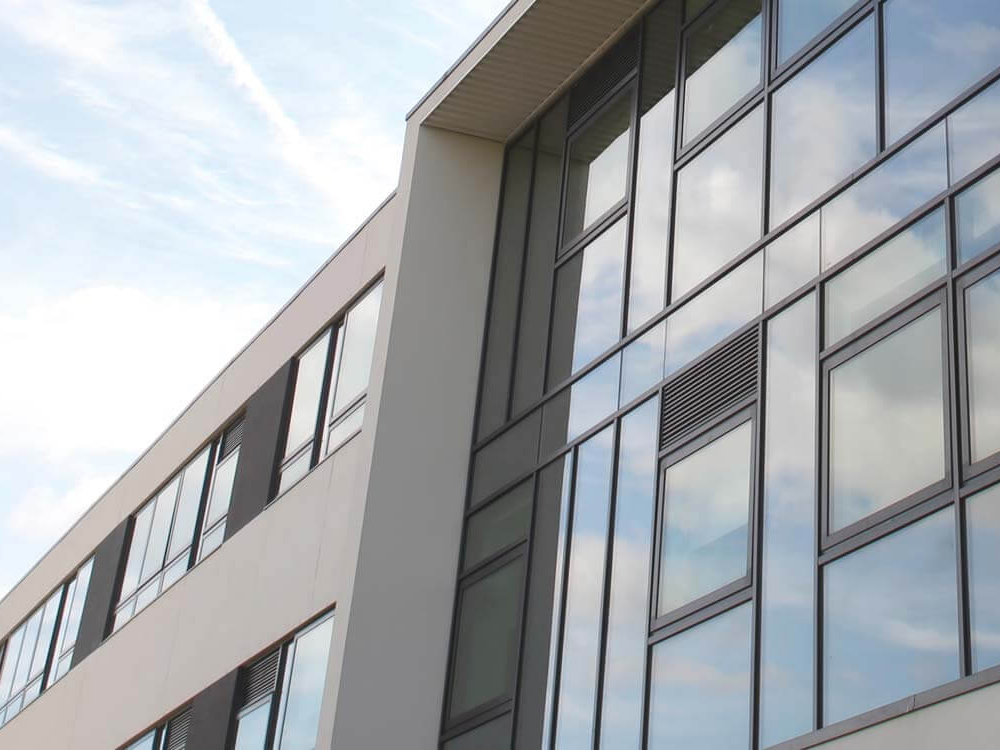

● glass wall
● push-out awning window
● push-out casement window
● casement door / pivot door
● glass louvre

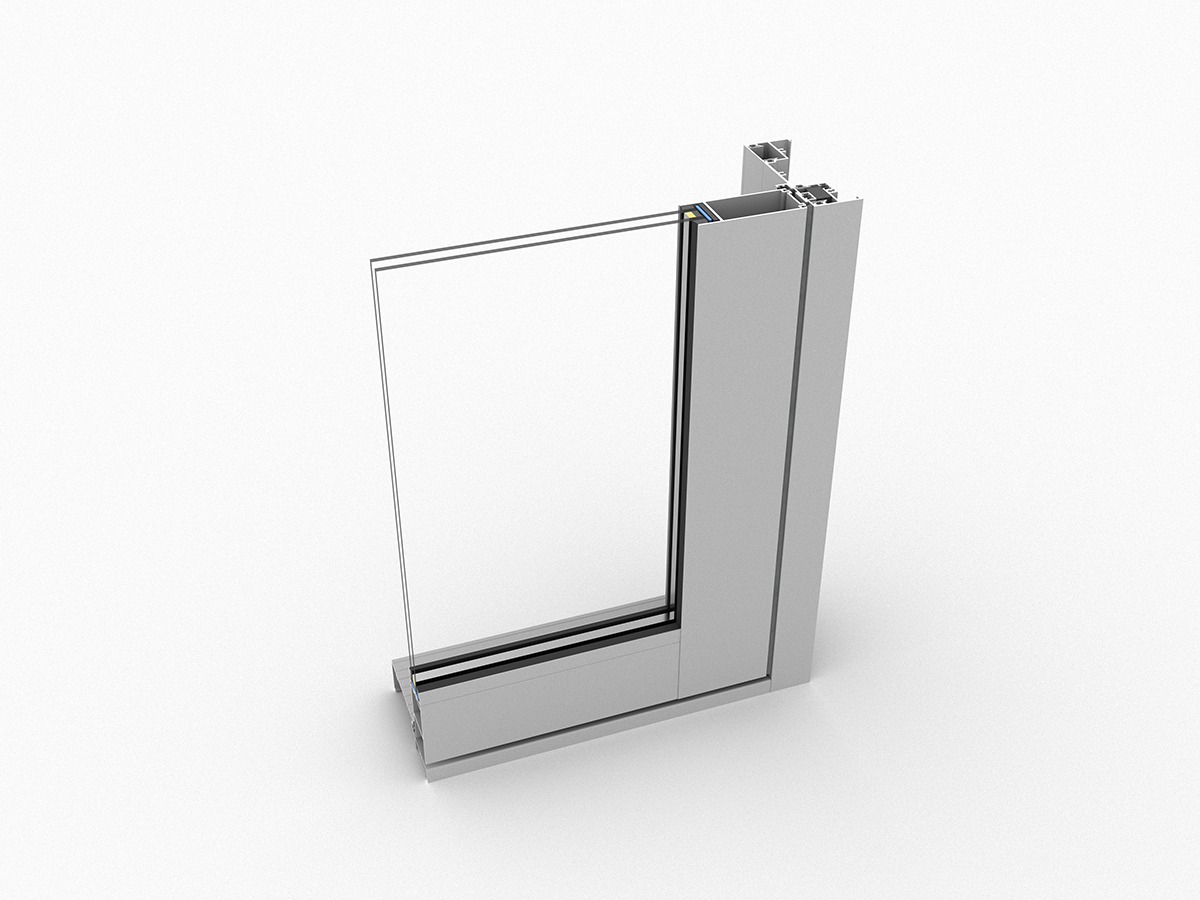

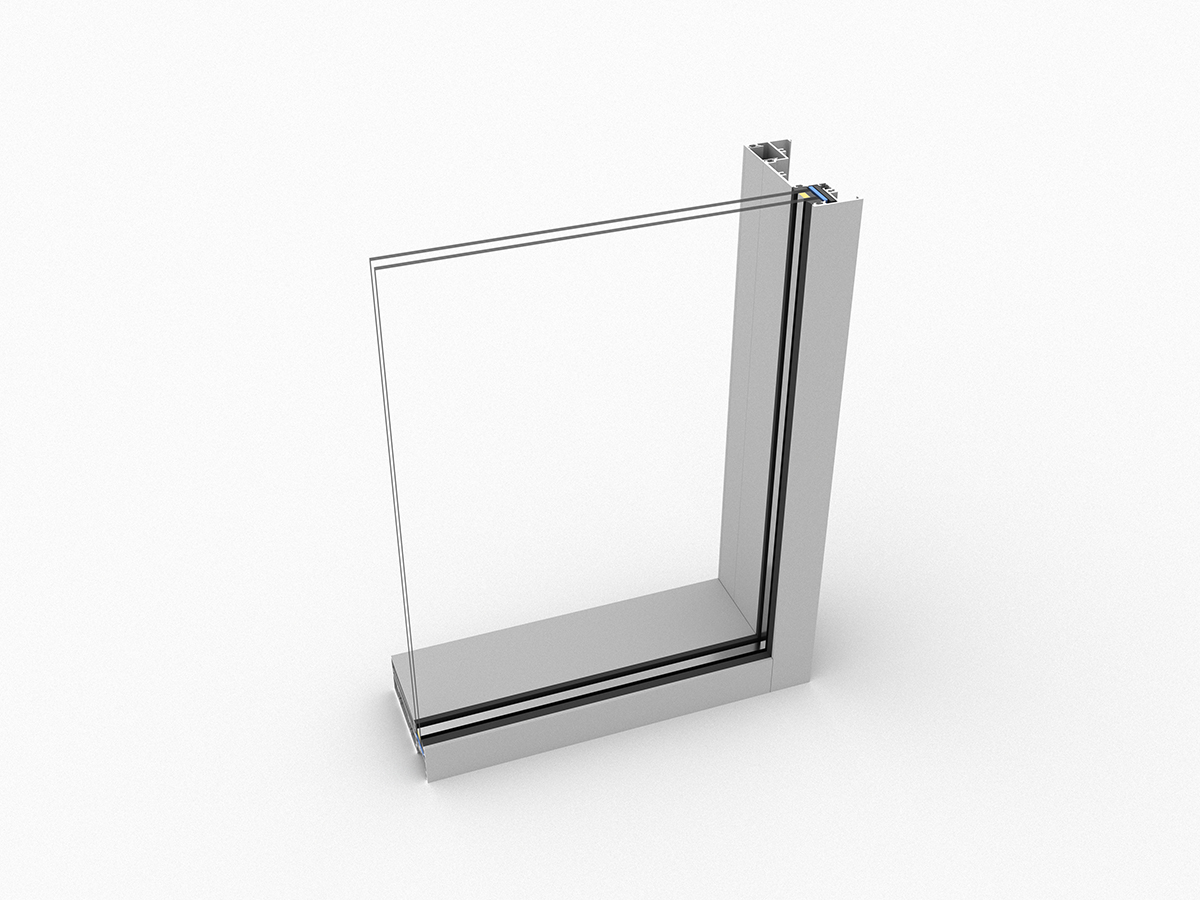

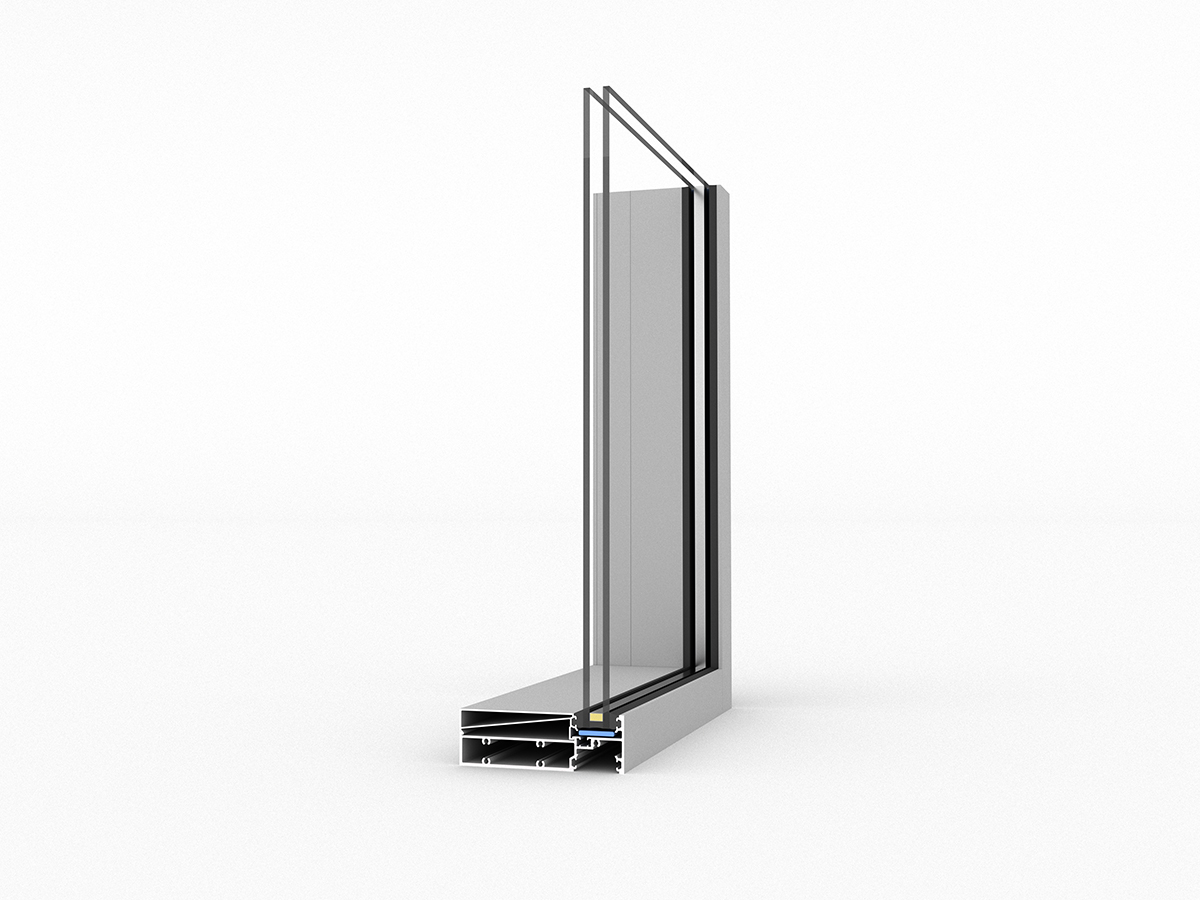

Fixed Glass Wall
● Large glazing application

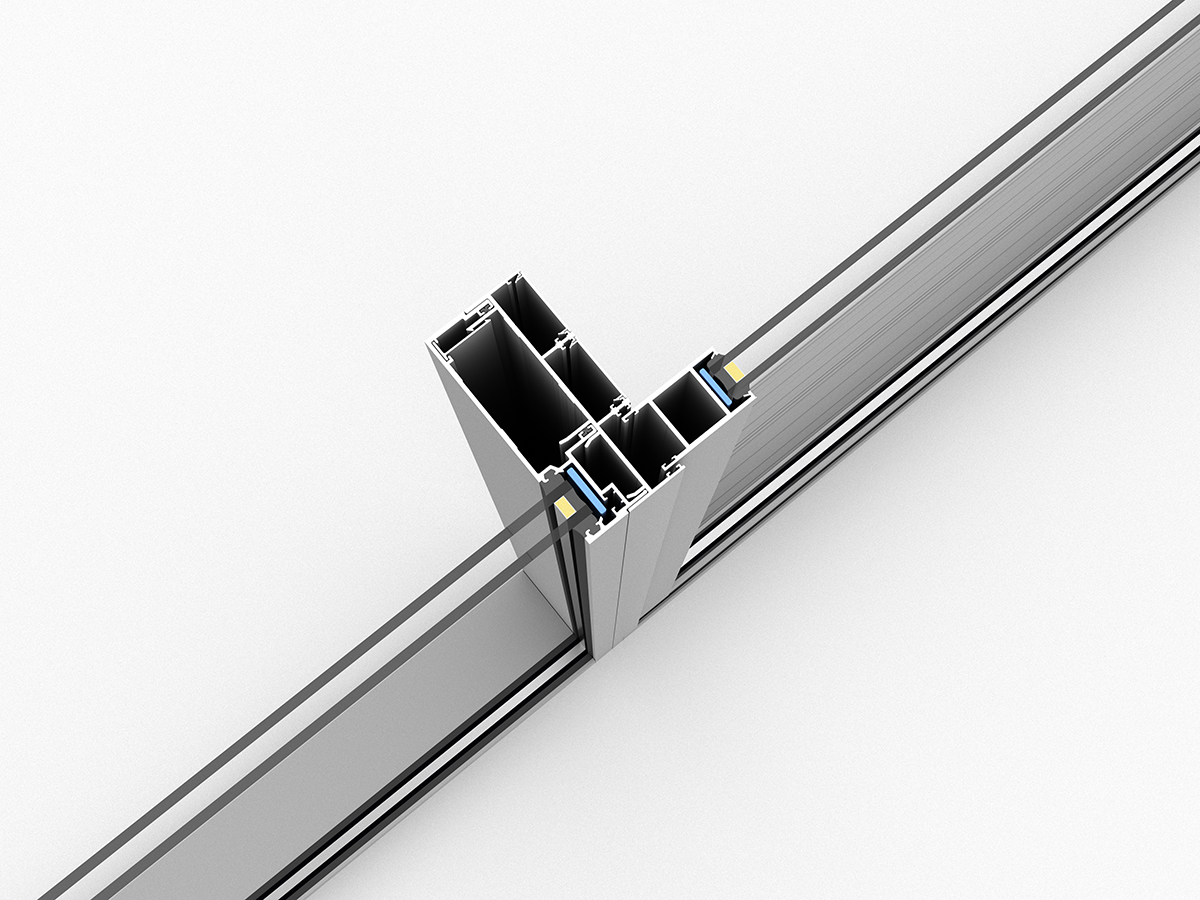

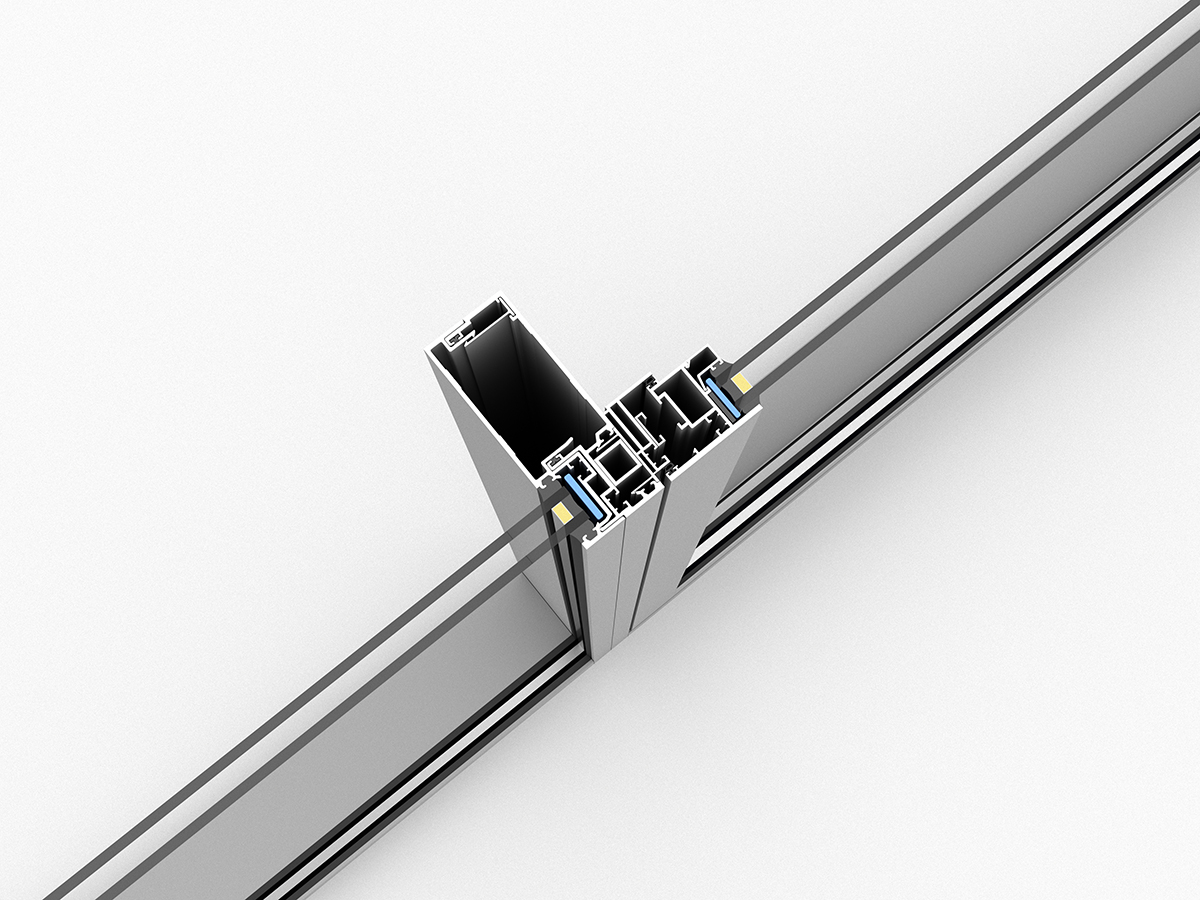

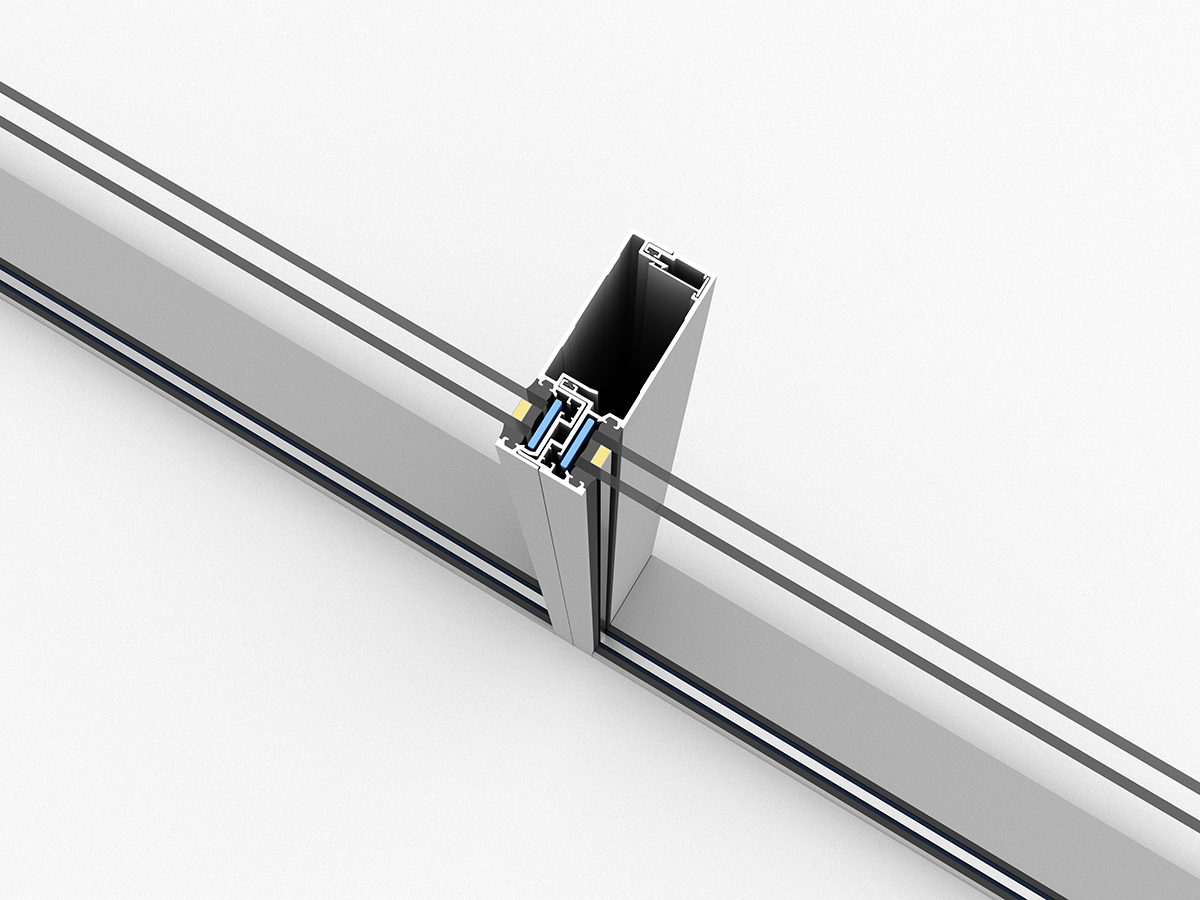

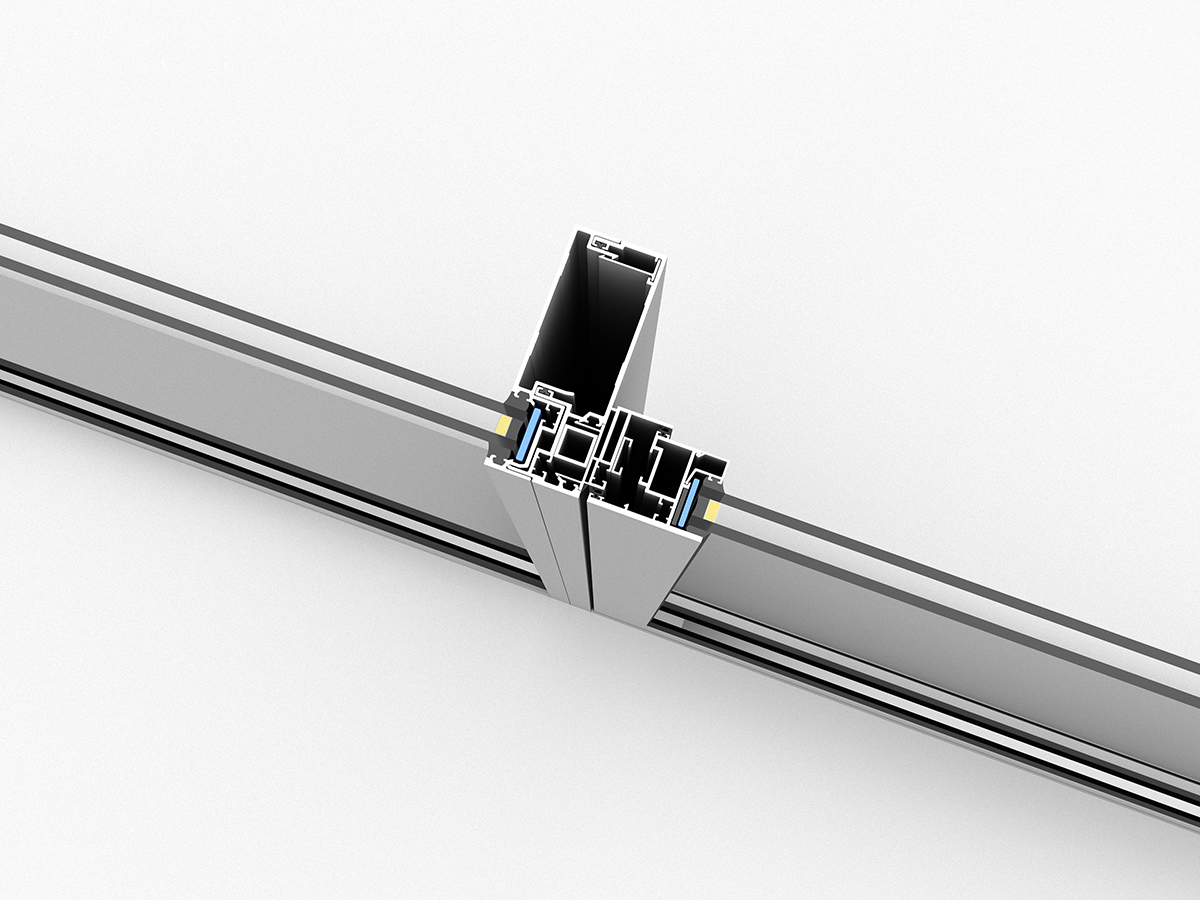

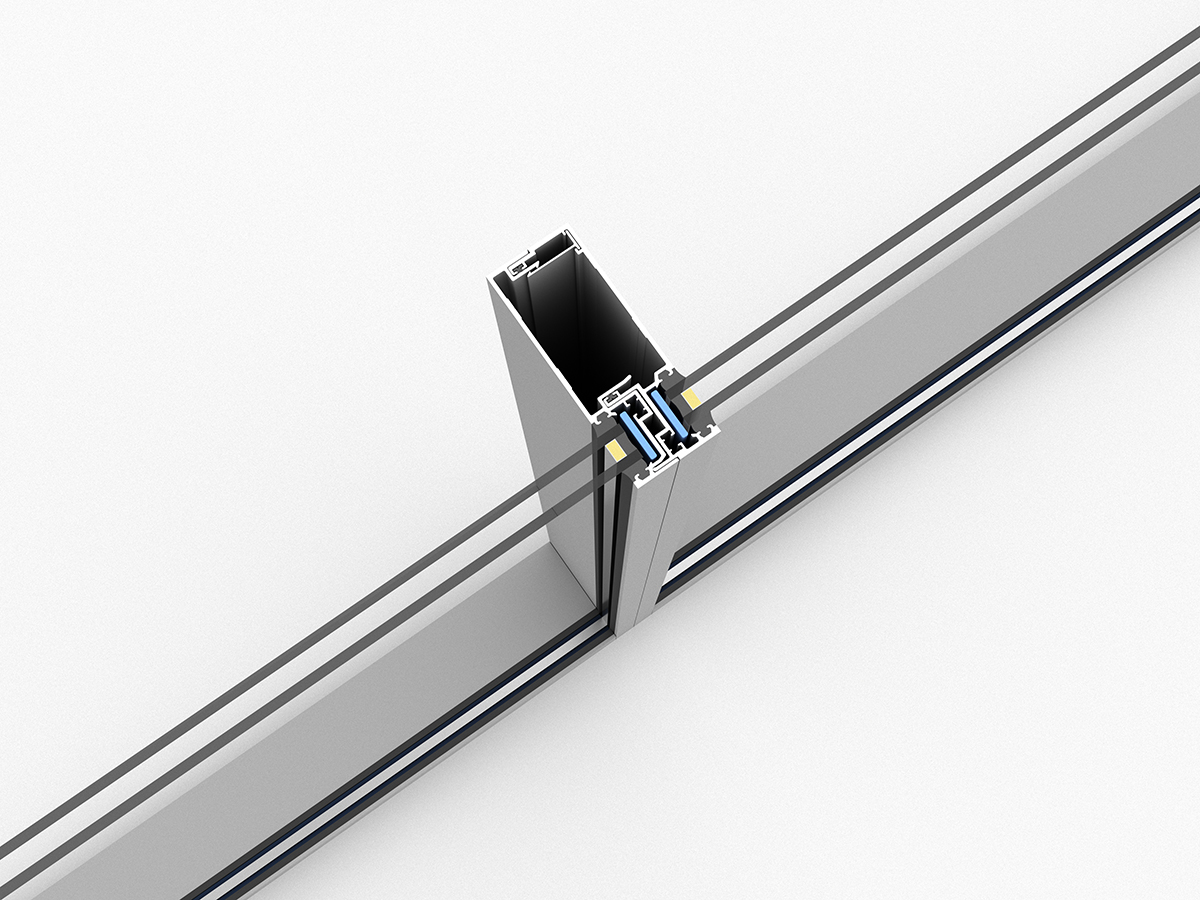

● joinable mullion - male-female joint
● up to 6 m2 each panel
● up to 6 m2 each panel
● standard double glazing
● subframe for installation
● subframe for installation

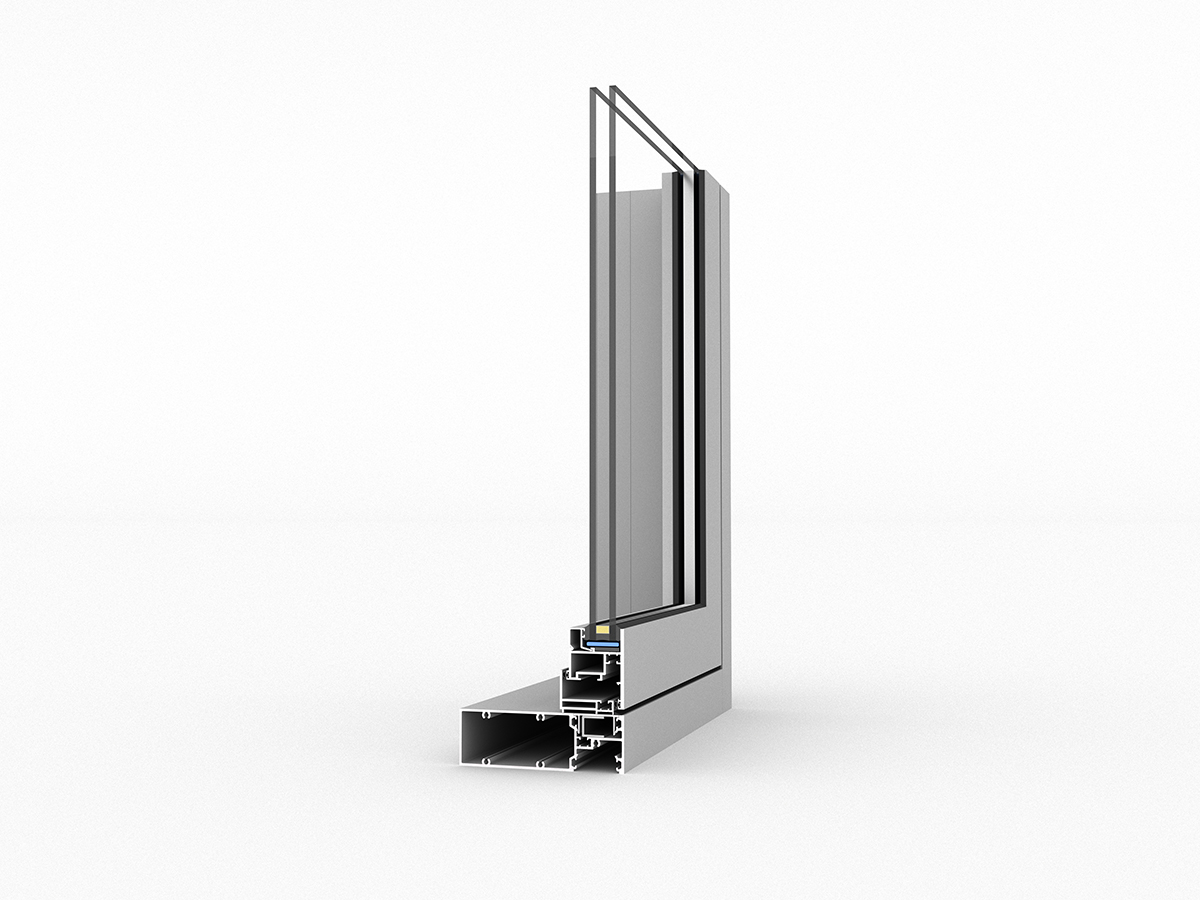

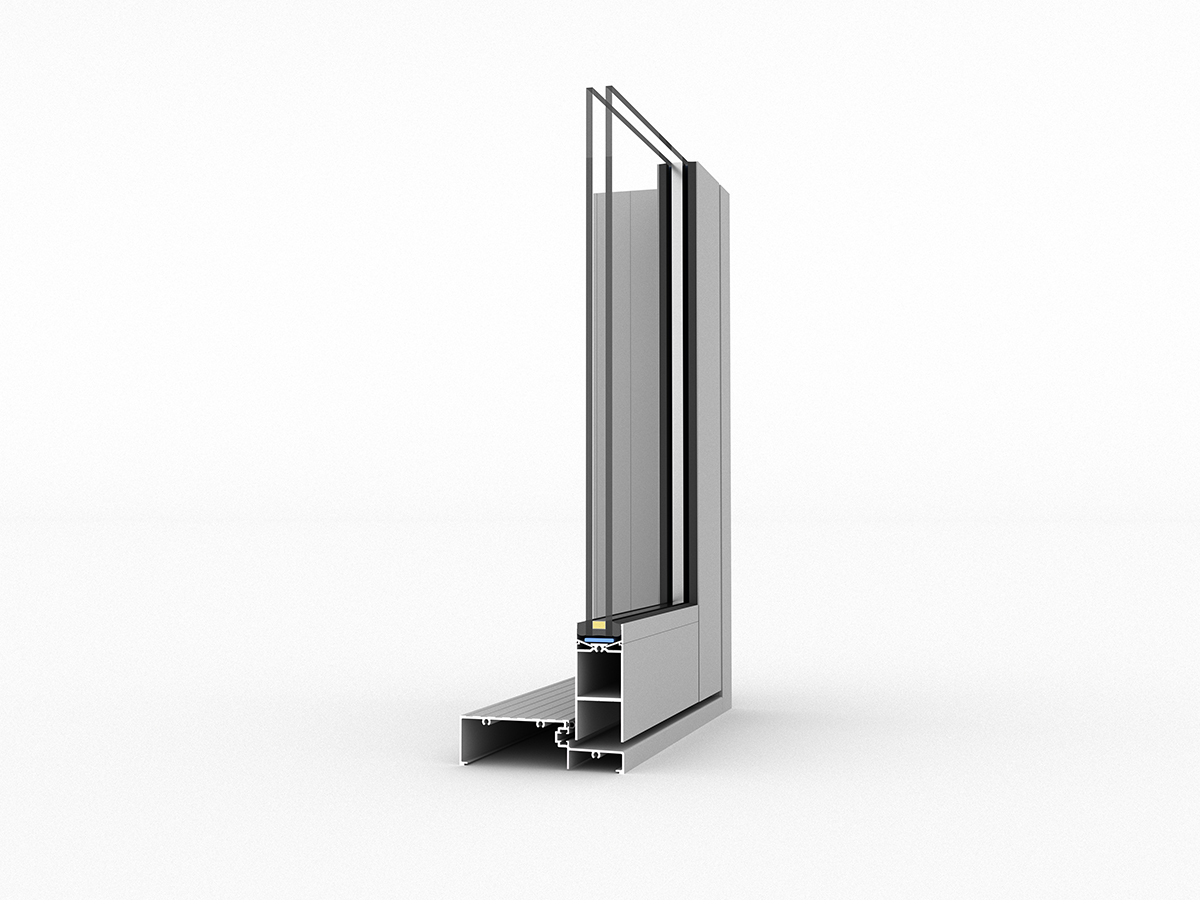

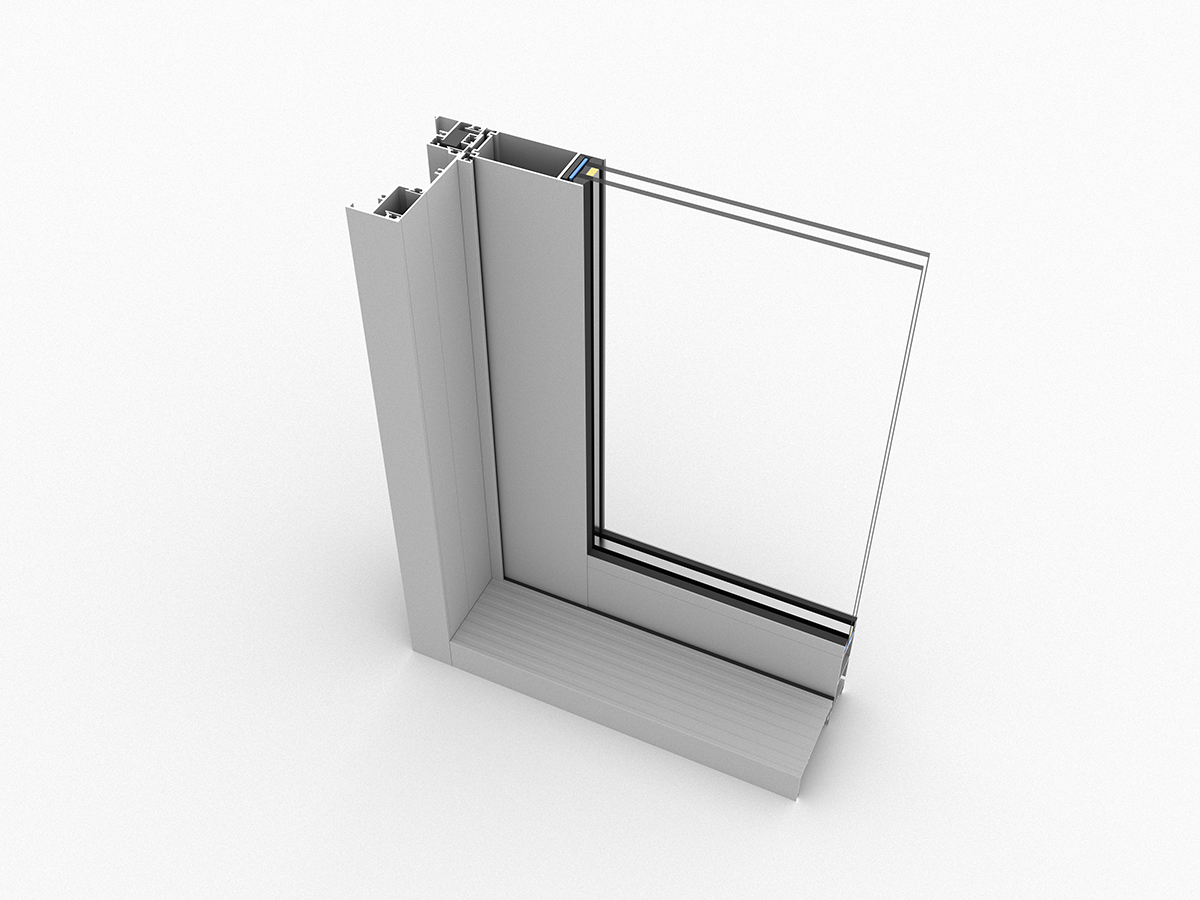

Awning Window / Casement Window
● European push-out style
● multi-point lock system for extra tightness
● standard double glazing
● visually appealing flush external frame
● opening restriction on request
● visually appealing flush external frame
● opening restriction on request
● retractable screen available
● subframe for installation
● subframe for installation

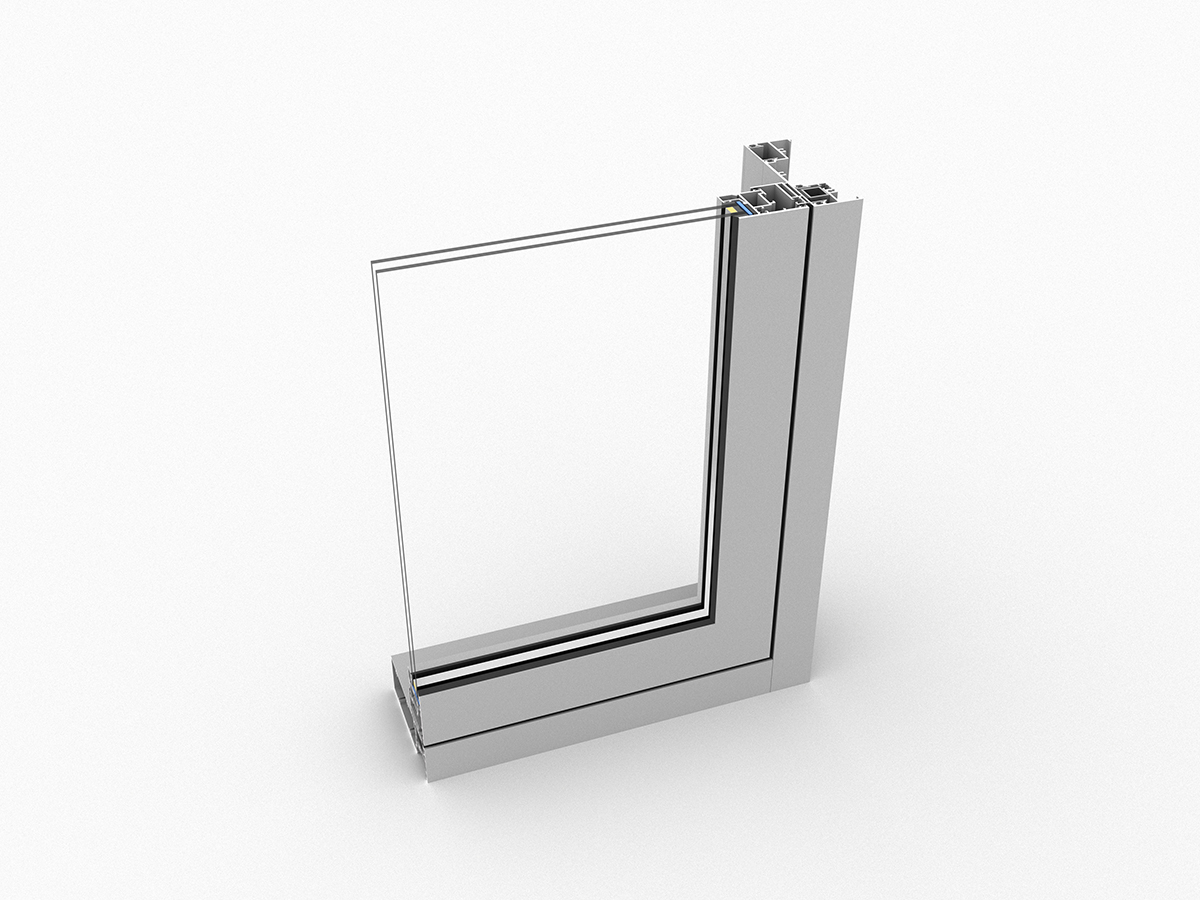

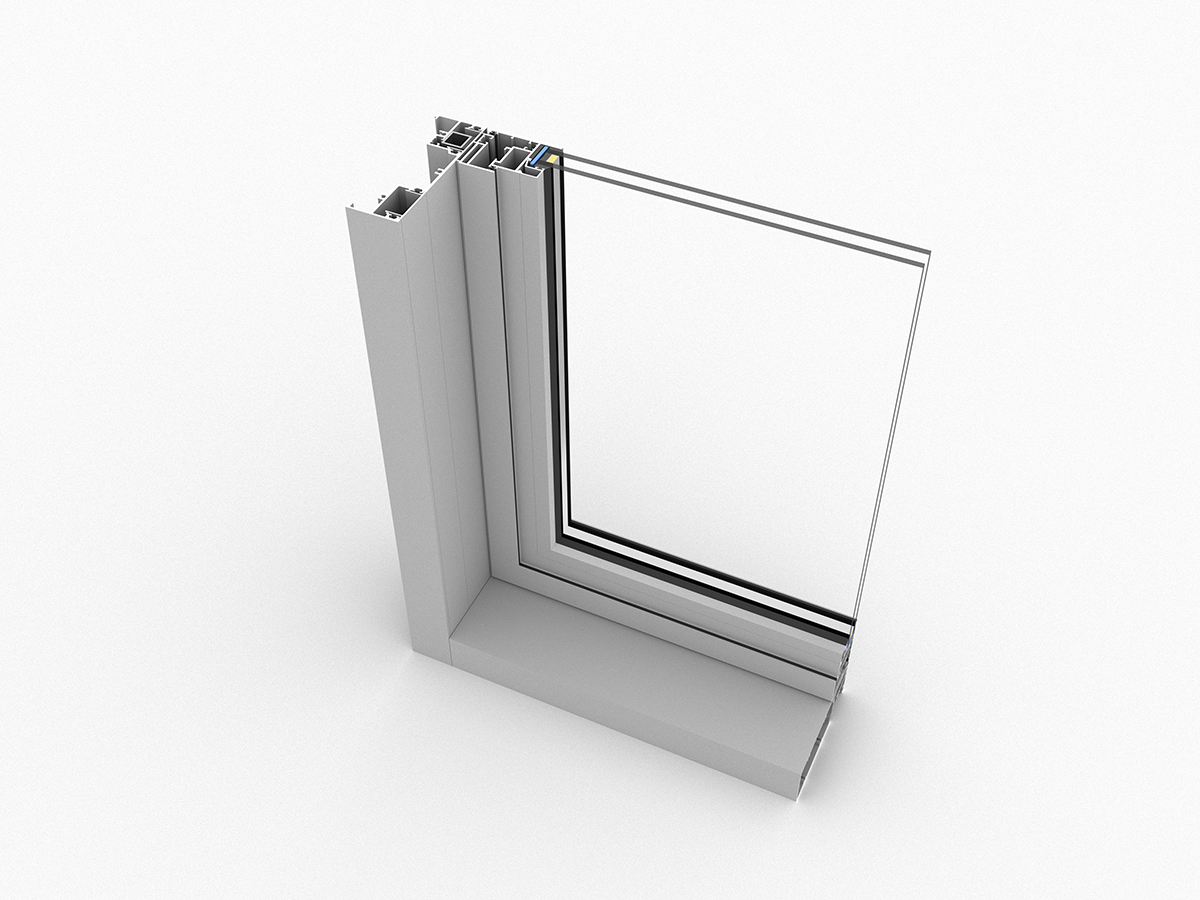

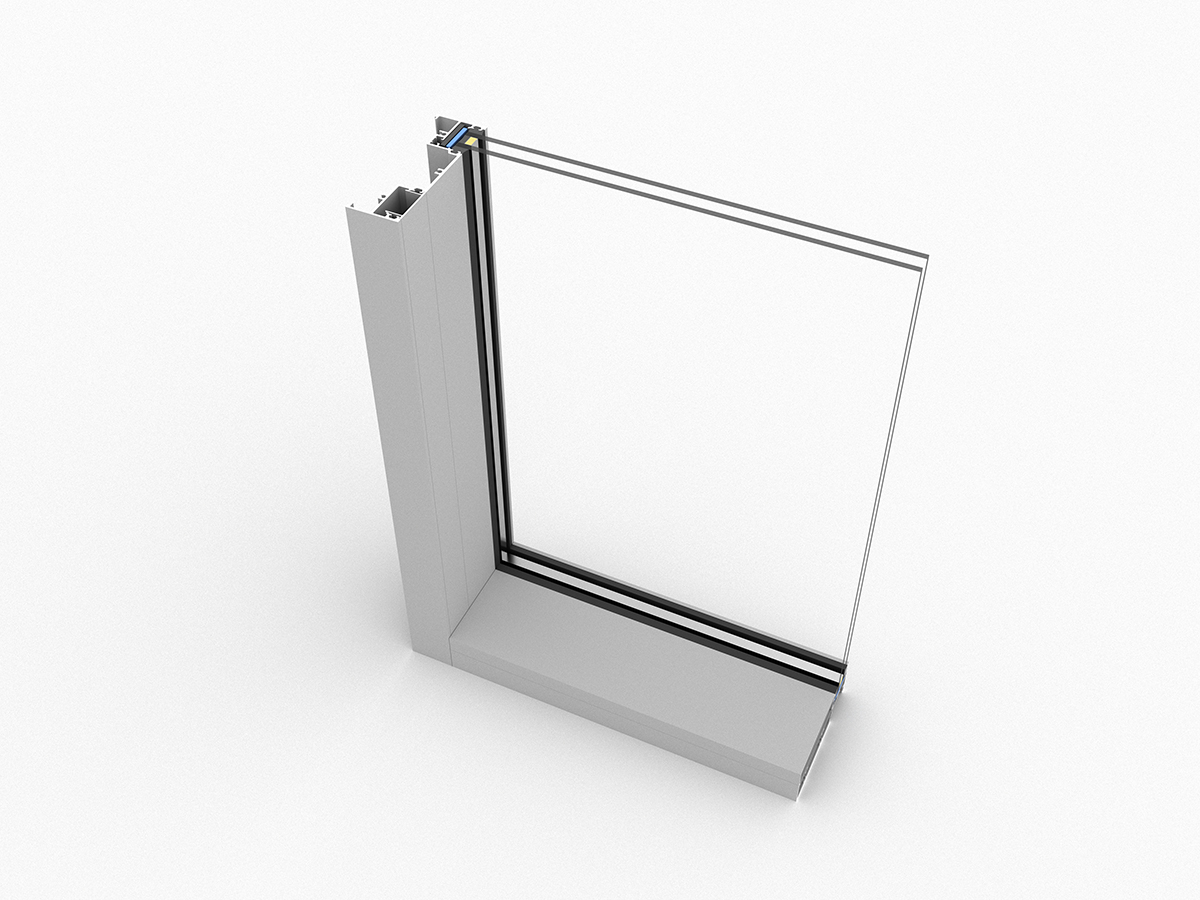

Casement Door / Pivot Door
● avaialble in casement door / pivot door
● standard double glazing
● visually appealing flush external frame
● standard sill, decliding low sill, no sill
● visually appealing flush external frame
● standard sill, decliding low sill, no sill
● screen - integrated casement screen door or retractable screen door
● subframe for installation
● subframe for installation
Performance
Frame
Maximum Sash Area
Maximum Sash Weight
U-value
U-value
SHGC
Acoustic Insulation
Acoustic Insulation
152 x 50 mm
6.0 m2 / 2.0 m2 (fixed / opening window)
80 kg / 120kg / 300 kg (opening window / casement door /pivot door)
3.60-1.54 (fixed, double glazing)
0.72-0.288 (fixed, double glazing)
33dB - 43dB (fixed, double glazing)
